FG dental diamond burs, dental diamonds, dental burs, Flat end Taper

Language

MDT DENTAL DIAMONDS

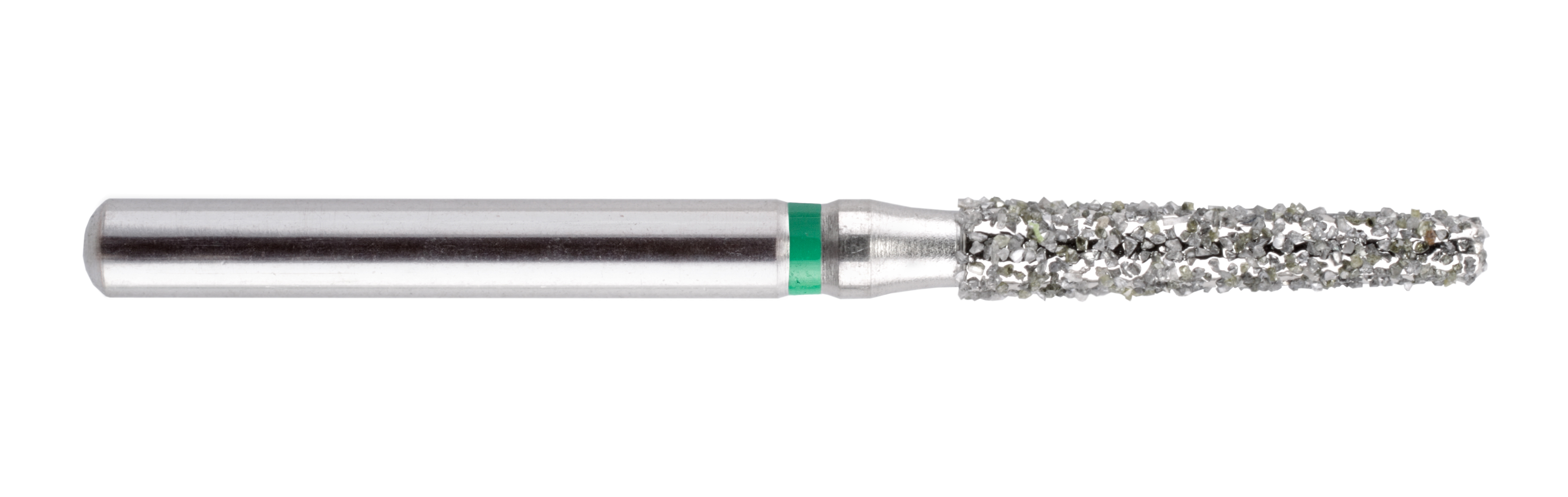

	FG Diamond Burs	/	Flat end Taper

169-170 (845), 171 (846), 172 (847), 173-174 (848)

MDT Dental Diamond FG Burs standard shanks are ISO 314
Short shanks (313) are specified

L1= Head Length
L2 = Overall Bur Length

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
169-010	169-010M	010	3.00	19.00	M

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
170-012	170-012M	012	4.00	19.00	M

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
170-015	170-015F	015	4.00	19.00	F
170-015	170-015M	015	4.00	19.00	M
170-015	170-015C	015	4.00	19.00	C
170-015	170-015XC	015	4.00	19.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
171-012	171-012F	012	6.00	21.00	F
171-012	171-012M	012	6.00	21.00	M
171-012	171-012C	012	6.00	21.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
171-014	171-014F	012	6.00	21.00	F
171-014	171-014M	014	6.00	21.00	M
171-014	171-014C	014	6.00	21.00	C
171-014	171-014XC	014	6.00	21.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
171-015	171-015F	015	6.00	21.00	F
171-015	171-015M	015	6.00	21.00	M
171-015	171-015C	015	6.00	21.00	C
171-015	171-015XC	015	6.00	21.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
171-019	171-019UF	019	6.00	21.00	UF
171-019	171-019XF	019	6.00	21.00	XF
171-019	171-019F	019	6.00	21.00	F
171-019	171-019M	019	6.00	21.00	M
171-019	171-019C	019	6.00	21.00	C
171-019	171-019XC	019	6.00	21.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
171-020	171-020M		6.00	21.00	M
171-020	171-020C	020	6.00	21.00	C
171-020	171-020XC	020	6.00	21.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
172-012	172-012F	012	8.00	22.00	F
172-012	172-012M	012	8.00	22.00	M
172-012	172-012C	012	8.00	22.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
172-013 (313)	172-013SM	013	9.00	20.50	M
172-013 (313)	172-013SC	013	9.00	20.50	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
172-014	172-014F	014	8.00	22.00	F
172-014	172-014M	014	8.00	22.00	M
172-014	172-014C	014	8.00	22.00	C
172-014	172-014XC	014	8.00	22.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
172-015 (313)	172-015SXF	015	8.00	19.50	XF
172-015 (313)	172-015SF	015	8.00	19.50	F
172-015 (313)	172-015SM	015	8.00	19.50	M
172-015 (313)	172-015SC	015	8.00	19.50	C
172-015 (313)	172-015SXC	015	8.00	19.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
172-016	172-016XF	016	8.50	22.50	XF
172-016	172-016F	016	8.50	22.50	F
172-016	172-016M	016	8.50	22.50	M
172-016	172-016C	016	8.50	22.50	C
172-016	172-016XC	016	8.50	22.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
172-017 (313)	172-017SF	017	8.00	19.50	F
172-017 (313)	172-017SM	017	8.00	19.50	M
172-017 (313)	172-017SC	017	8.00	19.50	C
172-017 (313)	172-17SXC	017	8.00	19.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
172-019 (313)	172-019SM	019	8.00	19.50	M
172-019 (313)	172-019SC	019	8.00	19.50	C
172-019	172-019SXC	019	8.00	19.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
173-014	173-014F	014	10.00	24.00	F
173-014	173-014M	014	10.00	24.00	M
173-014	173-014C	014	10.00	24.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
173-016 (313)	173-016SM	016	10.00	21.50	M
173-016 (313)	173-016SC	016	10.00	21.50	C
173-016 (313)	173-016SXC	016	10.00	21.50	XC
173-016	173-016XF	016	10.00	24.50	XF
173-016	173-016F	016	10.00	24.50	F
173-016	173-016M	016	10.00	24.50	M
173-016	173-016C	016	10.00	24.50	C
173-016	173-016XC	016	10.00	24.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
173-017	173-017XF	017	10.00	24.50	XF
173-017	173-017F	017	10.00	24.50	F
173-017	173-017M	017	10.00	24.50	M
173-017	173-017C	017	10.00	24.50	C
173-017	173-017XC	017	10.00	24.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
173-018 (313)	173-018SF	018	10.00	21.50	F
173-018 (313)	173-018SM	018	10.00	21.50	M
173-018 (313)	173-018SC	018	10.00	21.50	C
173-018 (313)	173-018SXC	018	10.00	21.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
173-019	173-019F	019	10.00	24.00	F
173-019	173-019M	019	10.00	24.00	M
173-019	173-019C	019	10.00	24.00	C
173-019	173-019XC	019	10.00	24.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
173-021 (313)	173-021SF	021	10.00	21.50	F
173-021 (313)	173-021SM	021	10.00	21.50	M
173-021 (313)	173-021SC	021	10.00	21.50	C
173-021 (313)	173-021SXC	021	10.00	21.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
174-013	174-013XF	013	11.50	24.50	XF
174-013	174-013F	013	11.50	24.50	F
174-013	174-013M	013	11.50	24.50	M
174-013	174-013C	013	11.50	24.50	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
174-020	174-020M	020	11.50	24.50	M

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
174-022	174-022M	022	11.50	24.50	M

MDT: Sterile and multi-use FG Dental Diamond Burs, RA burs, HP Pins & Discs
Fraises Dentaires ◊ Diamantbohrer ◊ Fresas Dentales ◊ Зубные алмазные Боры ◊ 歯科ダイヤモンド ◊ 金刚砂车针
