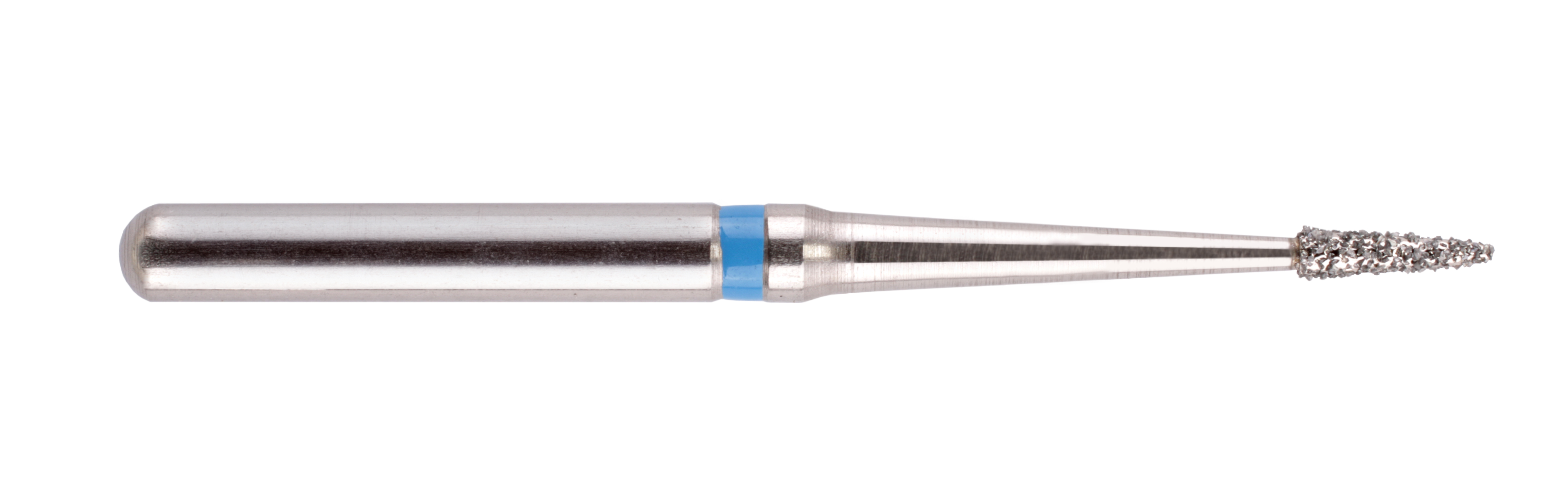

Flame Needle, Short Head

Language

MDT DENTAL DIAMONDS


	FG Dental Diamond Burs	/	Flame Needle, Short Head

536 (883S), 539 (883), 540 (889)

MDT Dental Diamond FG Burs standard shanks are ISO 314
Short shanks (313) are specified

L1= Head Length
L2 = Overall Bur Length

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
536-010S	536-010SF	010	3.00	17.00	F

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
539-007	539-007UF	007	3.00	22.00	UF
539-007	539-007XF	007	3.00	22.00	XF
539-007	539-007F	007	3.00	22.00	F
539-007	539-007M	007	3.00	22.00	M

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
539-010	539-010M	010	3.00	22.00	M
539-010	539-010C	010	3.00	22.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
540-008	540-008F	008	4.00	23.00	F
540-008	540-008M	008	4.00	23.00	M

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
540-010	540-010M	010	4.00	23.00	M
540-010	540-010C	010	4.00	23.00	C

MDT: Sterile and multi-use FG Dental Diamond Burs, RA burs, HP Pins & Discs
Fraises Dentaires ◊ Diamantbohrer ◊ Fresas Dentales ◊ Зубные алмазные Боры ◊ 歯科ダイヤモンド ◊ 金刚砂车针
