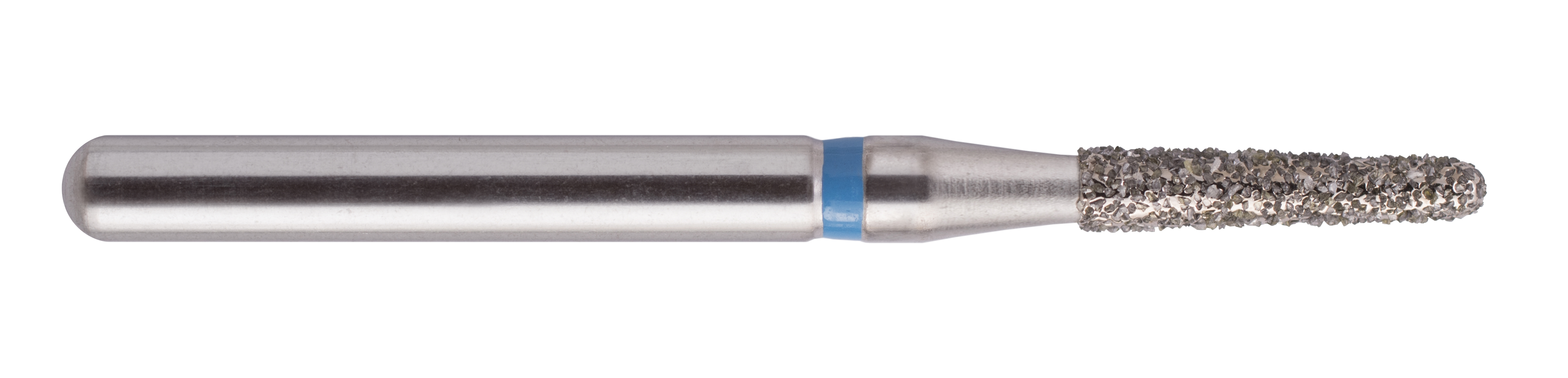

Rounded Taper

Language

MDT DENTAL DIAMONDS


	FG Dental Diamond Burs	/	Rounded Taper

196 (849), 197 (855), 198 (856), 199 (850)

MDT Dental Diamond FG Burs standard shanks are ISO 314
Short shanks (313) are specified

L1= Head Length
L2 = Overall Bur Length

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
196-015	196-015F	015	5.00	19.00	F
196-015	196-015M	015	5.00	19.00	M
196-015	196-015C	015	5.00	19.00	C
196-015	196-015XC	015	5.00	19.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
196-026	196-026M	026	4.00	19.00	M
196-026	196-026C	026	4.00	19.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
197-012 (313)	197-012SM	012	7.00	18.50	M
197-012 (313)	197-012SC	012	7.00	18.50	C
197-012	197-012F	012	6.50	21.50	F
197-012	197-012M	012	6.50	21.50	M
197-012	197-012C	012	6.50	21.50	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
197-014	197-014F	014	6.50	21.50	F
197-014	197-014M	014	6.50	21.50	M
197-014	197-014C	014	6.50	21.50	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
197-017 (313)	197-017SM	017	7.00	18.50	M
197-017 (313)	197-017SC	017	7.00	18.50	C
197-017 (313)	197-017SXC	017	7.00	18.50	XC
197-017	197-017M	017	6.00	20.50	M
197-017	197-017C	017	6.00	20.50	C
197-017	197-017XC	017	6.00	20.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
197-018 (313)	197-018SF	018	7.00	18.50	F
197-018 (313)	197-018SM	018	7.00	18.50	M
197-018 (313)	197-018SC	018	7.00	18.50	C
197-018 (313)	197-018SXC	018	7.00	18.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
197-019 (313)	197-019SF	019	7.00	18.50	F
197-019 (313)	197-019SM	019	7.00	18.50	M
197-019 (313)	197-019SC	019	7.00	18.50	C
197-019 (313)	197-019SXC	019	7.00	18.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
197-023	197-023M	023	7.00	21.00	M
197-023	197-023C	023	7.00	21.00	C
197-023	197-023XC	023	7.00	21.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
197-024 (313)	197-024SM	024	7.00	18.50	M
197-024 (313)	197-024SC	024	7.00	18.50	C
197-024 (313)	197-024SXC	024	7.00	18.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
198-014 (313)	198-014SF	014	8.00	19.50	F
198-014 (313)	198-014SM	014	8.00	19.50	M
198-014 (313)	198-014SC	014	8.00	19.50	C
198-014 (313)	198-014SXC	014	8.00	19.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
198-015	198-015XF	015	8.00	22.50	XF
198-015	198-015F	015	8.00	22.50	F
198-015	198-015M	015	8.00	22.50	M
198-015	198-015C	015	5.00	22.50	C
198-015	198-015XC	015	8.00	22.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
198-016 (313)	198-016SXF	016	8.00	19.50	XF
198-016 (313)	198-016SF	016	8.00	19.50	F
198-016 (313)	198-016SM	016	8.00	19.50	M
198-016 (313)	198-016SC	016	8.00	19.50	C
198-016 (313)	198-016SXC	016	8.00	19.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
198-017	198-017F	017	8.00	22.50	F
198-017	198-017M	017	8.00	22.50	M
198-017	198-017C	017	8.00	22.50	C
198-017	198-017XC	017	8.00	22.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
198-019 (313)	198-019SF	019	9.00	20.50	F
198-019 (313)	198-019SM	019	9.00	20.50	M
198-019 (313)	198-019SC	019	9.00	20.50	C
198-019 (313)	198-019SXC	019	9.00	20.50	XC
198-019	198-019F	019	8.50	22.50	F
198-019	198-019M	019	8.50	22.50	M
198-019	198-019C	019	8.50	22.50	C
198-019	198-019XC	019	8.50	22.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
198-023 (313)	198-023SM	023	8.50	20.00	M
198-023 (313)	198-023SC	023	8.50	20.00	C
198-023 (313)	198-023SXC	023	8.50	20.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-010 (313)	199-010SM	010	10.00	22.50	M

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-012 (313)	199-012SM	012	10.00	21.50	M
199-012 (313)	199-012SC	012	10.00	21.50	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-014 (313)	199-014SF	014	10.00	21.50	F
199-014 (313)	199-014SM	014	10.00	21.50	M
199-014 (313)	199-014SC	014	10.00	21.50	C
199-014 (313)	199-014SXC	014	10.00	21.50	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-015 (313)	199-015SF	015	10.00	22.00	F
199-015 (313)	199-015SM	015	10.00	22.00	M
199-015 (313)	199-015SC	015	10.00	22.00	C
199-015 (313)	199-015SXC	015	10.00	22.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-016 (313)	199-016SF	016	10.00	21.50	F
199-016 (313)	199-016SM	016	10.00	21.50	M
199-016 (313)	199-016SC	016	10.00	21.50	C
199-016 (313)	199-016SXC	016	10.00	21.50	XC
199-016	199-016M	016	10.00	24.00	M
199-016	199-016C	016	10.00	24.00	C
199-016	199-016XC	016	10.00	24.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-017 (313)	199-017SF	017	10.00	22.00	F
199-017 (313)	199-017SM	017	10.00	22.00	M
199-017 (313)	199-017SC	017	10.00	22.00	C
199-017 (313)	199-017SXC	017	10.00	22.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-018	199-018F	018	10.00	24.00	F
199-018	199-018M	018	10.00	24.00	M
199-018	199-018C	018	10.00	24.00	C
199-018	199-018XC	018	10.00	24.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
199-019 (313)	199-019SF	019	10.00	22.50	F
199-019 (313)	199-019SM	019	10.00	22.50	M
199-019 (313)	199-019SC	019	10.00	22.50	C
199-019 (313)	199-019SXC	019	10.00	22.50	XC
