MDT DENTAL DIAMONDS

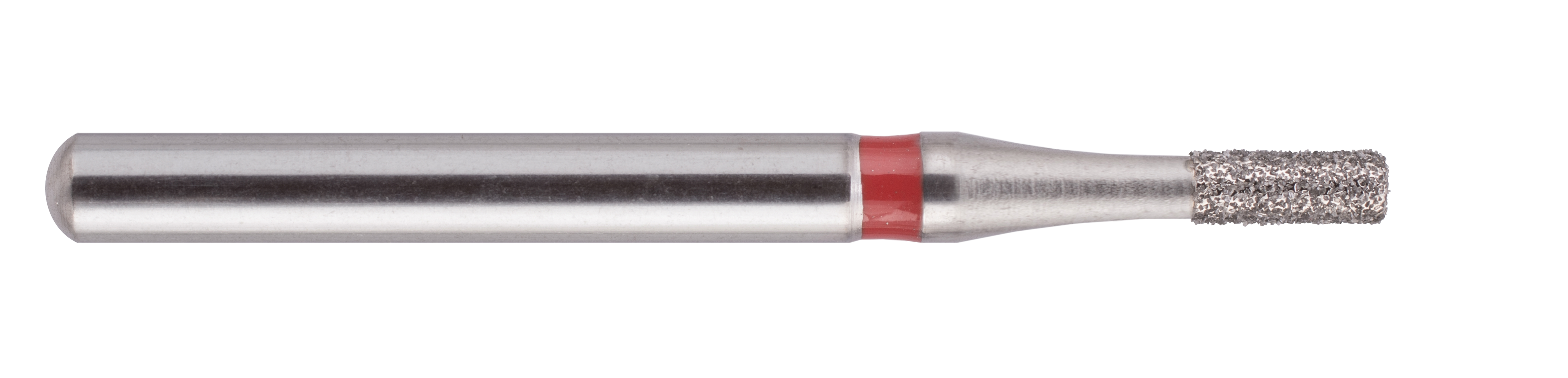

	FG Dental Diamond Burs	/	Flat end Cylinder

                                                         108-109 (835), 110 (836), 111 (837), 112 (837L)

                                                         MDT Dental Diamond FG Burs standard shanks are ISO 314
                                                        Short shanks (313) are specified

L1= Head Length
L2 = Overall Bur Length

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
108-009 (313)	108-009SM	009	3.00	16.00	M
108-009 (313)	108-009SC	009	3.00	16.00	C
108-009	108-009F	009	3.00	19.00	F
108-009	108-009M	009	3.00	19.00	M
108-009	108-009C	009	3.00	19.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
108-011	108-011F	011	3.00	19.00	F
108-011	108-011M	011	3.00	19.00	M
108-011	108-011C	011	3.00	19.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
109-010 (313)	109-010SM	010	4.00	16.00	M
109-010 (313)	109-010SC	010	4.00	16.00	C
109-010	109-010M	010	4.00	19.00	M
109-010	109-010C	010	4.00	19.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
109-011 (313)	109-011SM	011	5.00	17.00	M
109-011 (313)	109-011SC	011	5.00	17.00	C
109-011	109-011M	011	5.00	19.50	M
109-011	109-011C	011	5.00	19.50	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
109-012 (313)	109-012SM	012	4.00	16.00	M
109-012 (313)	109-012SC	012	4.00	16.00	C
109-012	109-012M	012	4.00	19.00	M
109-012	109-012C	012	4.00	19.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
109-015	109-015F	015	4.00	19.00	F
109-015	109-015M	015	4.00	19.00	M
109-105	109-015C	015	4.00	19.00	C
109-015	109-015XC	015	4.00	19.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
109-018	109-018M	018	4.00	19.00	M
109-018	109-018C	018	4.00	19.00	C
109-018	109-018XC	018	4.00	19.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
110-012 (313)	110-012SXF	012	7.00	19.00	XF
110-012 (313)	110-012SF	012	7.00	19.00	F
110-012 (313)	110-012SM	012	7.00	19.00	M
110-012 (313)	110-012SC	012	7.00	19.00	C
110-012	110-012F	012	6.00	21.00	F
110-012	110-012M	012	6.00	21.00	M
110-012	110-012C	012	6.00	21.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
110-014	110-014F	014	6.50	21.00	F
110-014	110-014M	014	6.50	21.00	M
110-014	110-014C	014	6.50	21.00	C
110-014	110-014XC	014	6.50	21.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
110-015 (313)	110-015SF	015	6.00	19.00	F
110-015 (313)	110-015SM	015	6.00	19.00	M
110-015 (313)	110-015SC	015	6.00	19.00	C
110-015 (313)	110-015SXC	015	6.00	19.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
110-017 (313)	110-017SM	017	6.50	19.00	M
110-017 (313)	110-017SC	017	6.50	19.00	C
110-017 (313)	110-017SXC	017	6.50	19.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
111-012	111-012XF	012	8.00	22.00	XF
111-012	111-012M	012	8.00	22.00	M
111-012	111-012C	012	8.00	22.00	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
111-014	111-014F	014	8.00	22.00	F
111-014	111014M	014	8.00	22.00	M
111-014	111-014C	014	8.00	22.00	C
111-014	111-014XC	014	8.00	22.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
111-016 (313)	111-016SM	016	8.00	19.50	M
111-016 (313)	111-016SC	016	8.00	19.50	C

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
111-017	111-017F	017	8.00	22.00	F
111-017	111-017M	017	8.00	22.00	M
111-017	111-017C	017	8.00	22.00	C
111-017	111-017XC	017	8.00	22.00	XC

ISO No.	Order No.	dia > 1/10 mm	L1 mm	L2 mm	Diamond Grit	Color
112-014	112-014M	014	10.00	24.00	M
112-014	112-014C	014	10.00	24.00	C

MDT: Sterile and multi-use FG Dental Diamond Burs, RA burs, HP Pins & Discs
